IEEE802.11a/b/g/n/ac/ax
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

3 x 10/100/1000Mbps RJ45 ports per node

6 x 3dBi Internal antenna

1 x Reset Button
1 x MESH Button

Input: AC 100-240V, 50/60Hz
Output: DC 12 V ⎓ 1.5 A

105x105x200mm（4.13x4.13x7.87）

1 x Tri-color LED Indicator(Green,Yellow,Red)

IEEE802.11a/b/g/n/ac/ax

Comply with IEEE802.11k/v

Wi-Fi EasyMesh

2.4GHz: 574Mbps (802.11ax, HE160)
5GHz: 4804Mbps (802.11ax)

CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

Beam Forming
MU-MIMO
AP Steering
Band Steering
OFDMA
1024-QAM

WPA2-PSK
WPA3-SAE/WAP2-PSK

Router Mode,AP Mode

PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia)

DHCP Server, DHCP Client List

Port Forwarding, DMZ Host, UPnP

Client Filter
URL Filter
Time Limit

Forbid TCP/UDP flood attack

PPTP Server, PPTP/L2TP Client

Support manually setting DNS server

Ethernet Backhaul
IPv6
IPTV

Support App and web management
Guest Network
Firmware upgrade online

0℃~40℃

-40C ~70℃

10 %~90% RH non-condensing

5 %~ 90%RH non-condensing

Available in iOS 9.0 or later, Android 4.4 or later

Default Access Address: tendawifi.com or http://192.168.0.1

CE
RoHS
FCC

Mesh Router
Ethernet Cable
Power Adapter
Installation Guide

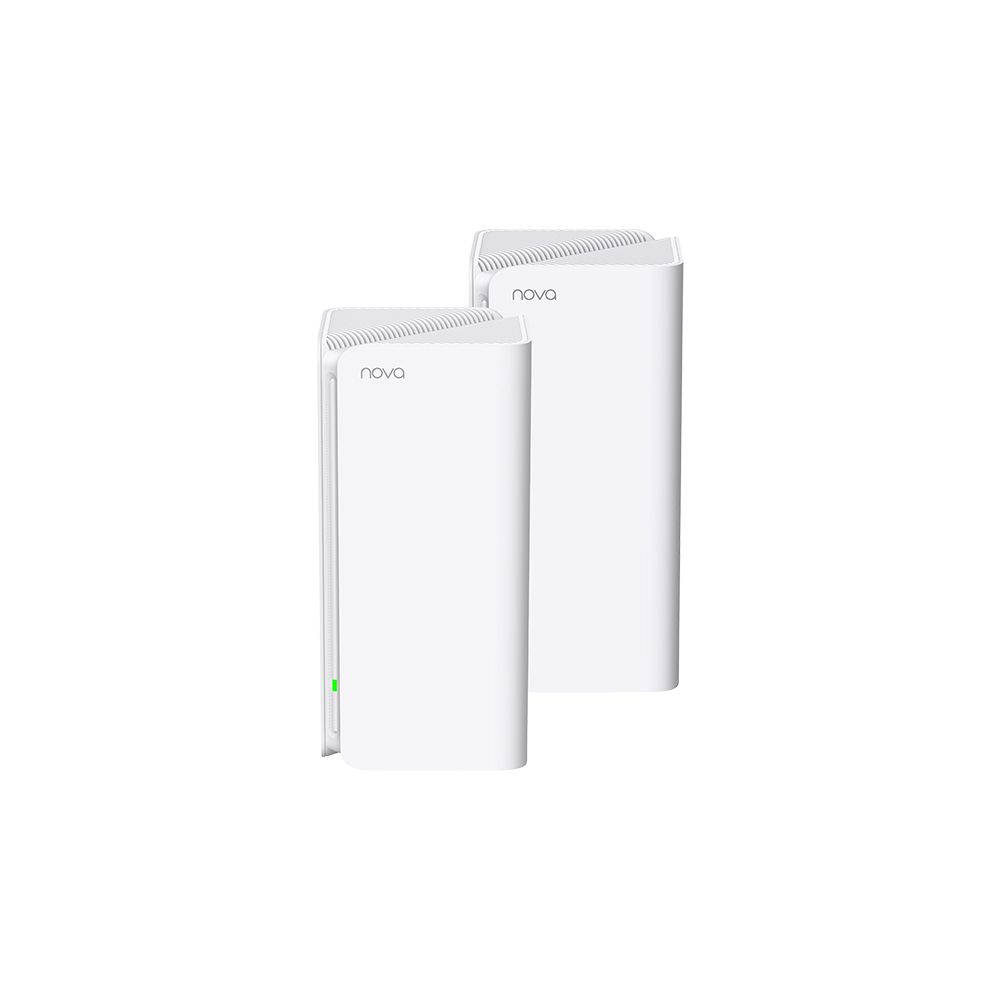

Mesh15X* 2, Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1
