•  参数
  • Hardware

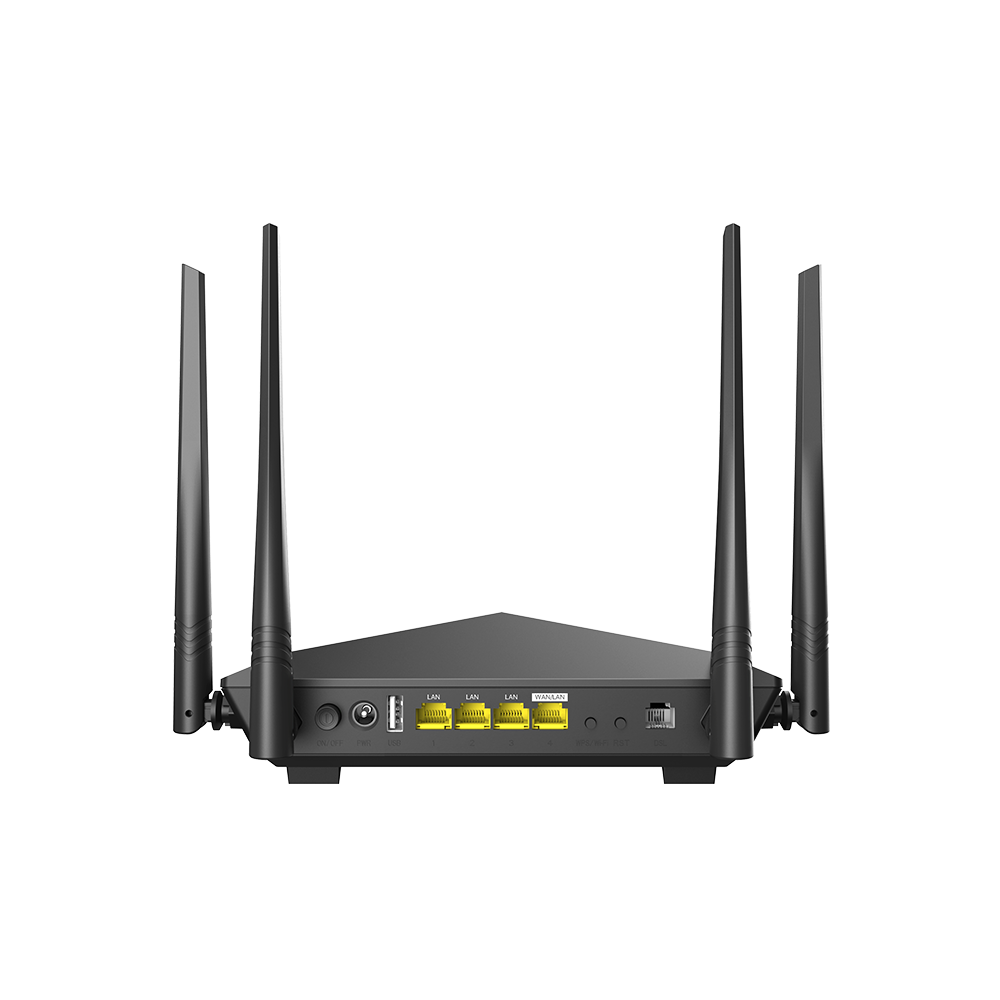

    Interfaces

    3 *10/100/1000 RJ45 LAN Ports
    1 *10/100/1000 RJ45 LAN/WAN Port
    1 *RJ11 Port
    1 * USB 2.0 Port

    Button

    WPS&Wi-Fi
    RST
    Power

    External Power Supply

    12V 1.5A

    IEEE Standards

    IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax, IEEE 802.3, 802.3u, IEEE 802.1Q

    VDSL2 Standards

    ITU G.993.2, Up to 17a /30a/35b profile
    ITU-T G.993.5 (G.vector)
    ITU-T G.998.4 (G.INP)

    ADSL Standards

    Full-rate ANSI T1.413 Issue 2
    ITU-T G.992.1(G.DMT)
    ITU-T G.992.2(G.Lite)
    ITU-T G.994.1 (G.hs)

    ADSL2 Standards

    ITU-T G.992.3 (G.dmt.bis)

    ADSL2+ Standards

    ITU-T G.992.5

    Dimensions ( Wx D x H)

    220x141.6x59mm

    Antenna Type

    4 * 5 dBi Antenna

  • Wireless
    Wireless Standards

    IEEE 802.11a/n/ac/ax 5GHz
    IEEE 802.11b/g/n 2.4GHz

    Frequency

    20M/40M/80M

    Signal Rate

    300Mbps at 2.4GHz
    1201Mbps at 5GHz

    Wireless Functions

    Enable/Disable Wireless Radio
    Guest network
    Access Control
    WPS
    MESH

    Wireless Security

    None, WPA, WPA2, WPA/WPA2, WPA3

    Transmission Power

    2.4GHz <20dBm(EIRP)
    5GHz <23dBm(EIRP)

    Wireless Schedule

    Support

  • Software
    Advanced Features

    PVC Configuration
    DSL Settings
    Routing
    QoS( Based IP )

    Security

    MAC Filtering
    IP/Port Filtering
    URL Blocking
    DOS

    Operating Modes

    VDSL/ADSL Modem Router
    Wireless Router

    Management

    Web Based Conguration(HTTP)
    Remote management
    command Line Interface
    SSL for TR-069
    SNMP v1/2c
    Web Based Firmware Upgrade
    Diagnostic Tools

    DHCP

    DHCP Server
    Client List
    Address Reservation

    Port Forwarding

    Port Forwarding, UPnP, DMZ

    Dynamic DNS

    Support

    VPN

    PPTP
    L2TP
    IPsec

    Protocols

    Supports IPv4 and IPv6

    ATM/PPP Protocols

    ATM Forum UNI3.1/4.0
    PPP over ATM (RFC 2364)
    PPP over Ethernet (RFC2516)
    IPoA (RFC1577/2225)
    MER\IPoE (RFC 1483 Routed)
    Bridge (RFC1483 Bridge)
    PVC – Up to 8 PVCs

    Guest Network

    Support

  • Certifications
    Certifications

    CE、RoHS

  • Environment
    Storage Temperature

    -40℃ ~ 70℃

    Operation Temperature

    0℃~40℃(32℉ ~104℉)

    Operating Humidity

    10% ~ 90% (Non-condensing)

    Storage Humidity

    5% ~ 90% (Non-condensing)

  • Package Contents
    Package Contents

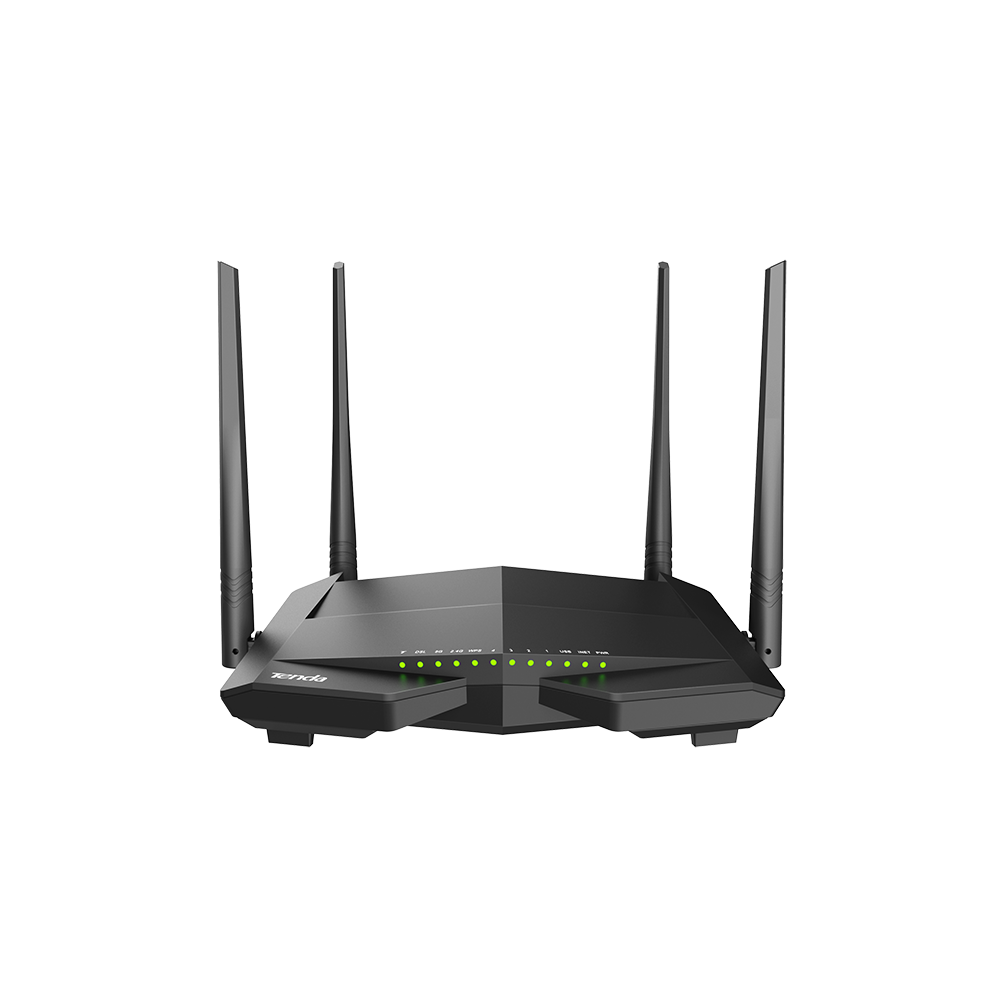

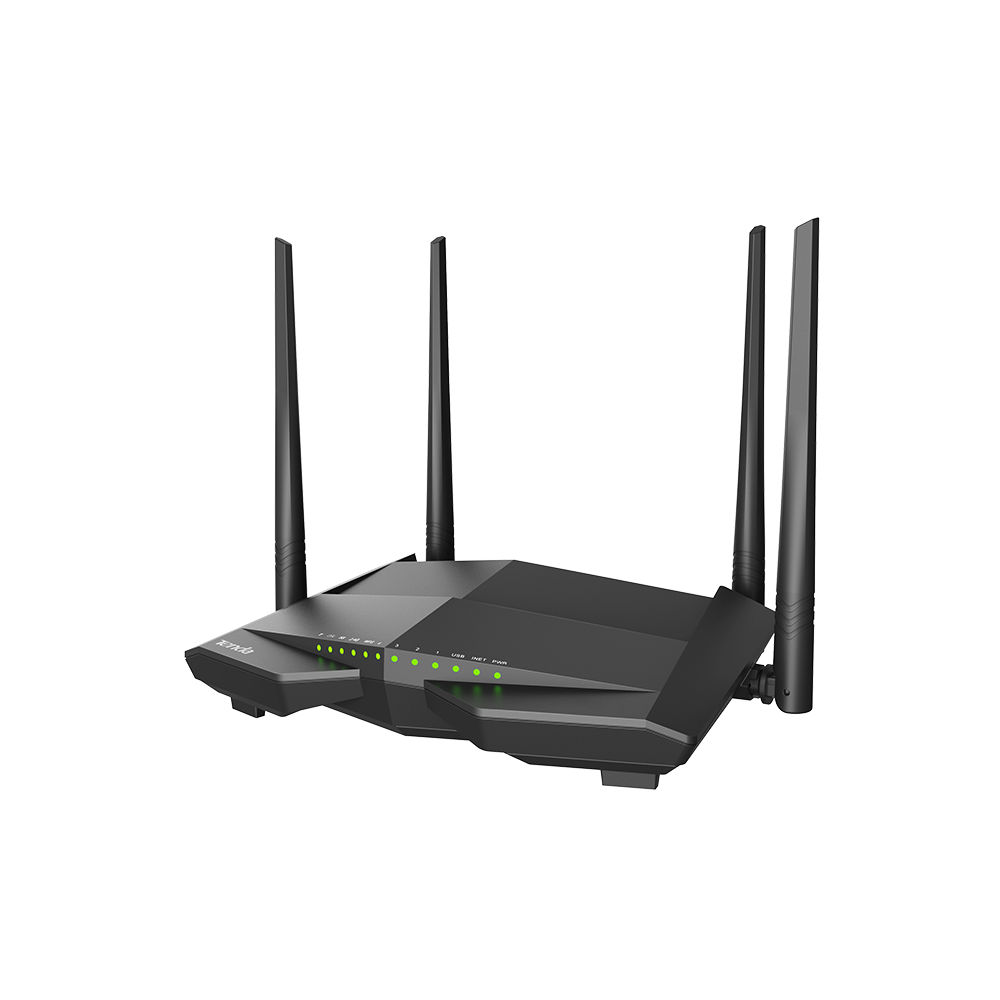

    AX1500 Dualband Wi-Fi 6 Gigabit VDSL Modem Router*1
    External Splitter*1
    Power Adapter*1
    RJ11 DSL Cable*2
    RJ45 Ethernet Cable*1
    Quick Installation Guide*1
