ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4

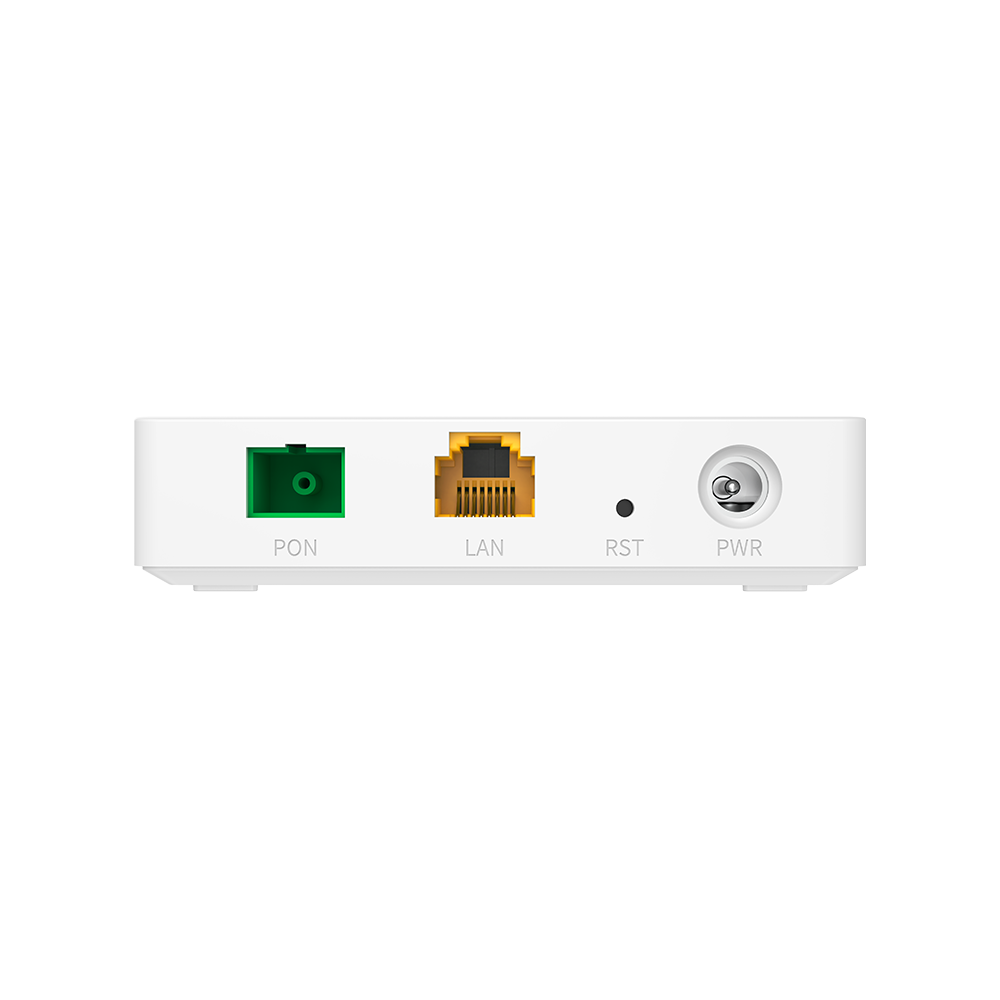

1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port

LAN，LOS，PON，PWR

1 RESET Button

Class B+

Transmit at 1310nm, Receive at 1490nm

20km Max

Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

59*57*23mm(W*D*H)

0.5~5dBm

-28~-8dBm

DC 9V /0.6A

≤5.4w

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

PPPoE , Dynamic IP, Static IP, Bridge

Internet

IPv4, IPv6

DHCP, Dynamic DNS

ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ

Radvd, DHCPv6, MLD Proxy, MLD Snooping

Ping, Ping6, Tracert, Tracert6

0°c ~ 45°c

-40°c ~ 70°c

10% ~ 90% （Non-condensing）

5% ~ 90% (Non-condensing)

1*HG1,1* Power adapter,1* Quick install guide

CE, FCC, RoHS, Anatel
