IEEE802.3, IEEE802.3u

1*10/100Mbps WAN port
3*10/100Mbps LAN ports

4*6dBi external antennas

1*WiFi/WPS button

Input：100-240V—50/60Hz 0.4A
Output：DC 9V1A

220mm*141.5mm*49mm(L*W*H)

SYS*1,WAN*1, LAN*1,WiFi*1

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Simultaneous dual band 2.4

CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

WPA-PSK/WPA2-PSK, WPA/WPA2
 Wireless Security: Enable/Disable
 WPS(WiFi Protected Set-up)
fast encryption

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server
DHCP Client List
DHCP Reservation

Port Forwarding
DMZ Host
UPnP

Client Filter (support blacklist and whitelist)
Parental Control
Remote Management

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

Support DynDNS, Oray.com, 88ip

IPsec pass through
PPTP pass through
L2TP pass through

PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App

Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup
Supports IPv6

Operating Environment:0℃~40℃
Storage Environment:-40℃~70℃

Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing

Default Access: tendawifi.com or http://192.168.0.1

CE/FCC/RoHS

2.400-2.4835GHz: 19.55dBm (EIRP)
5.150-5.250GHz: 19.98dBm (EIRP)

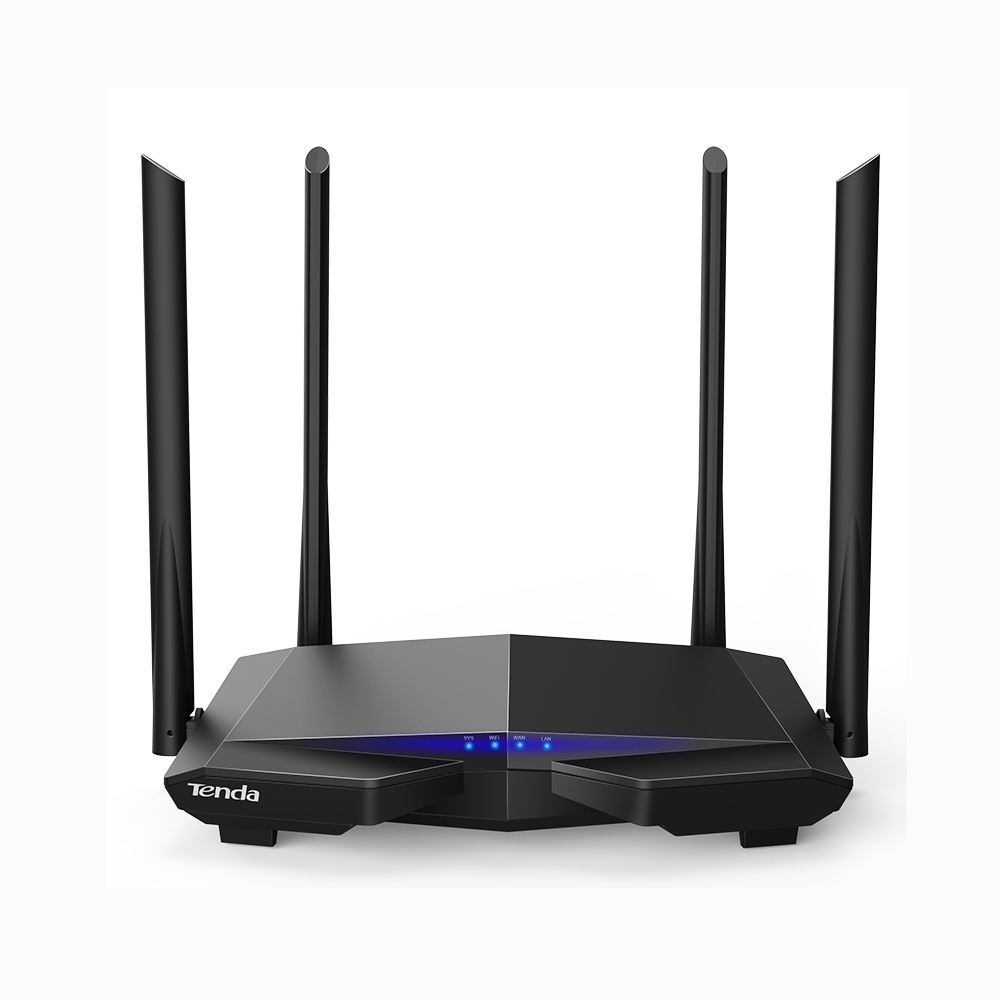

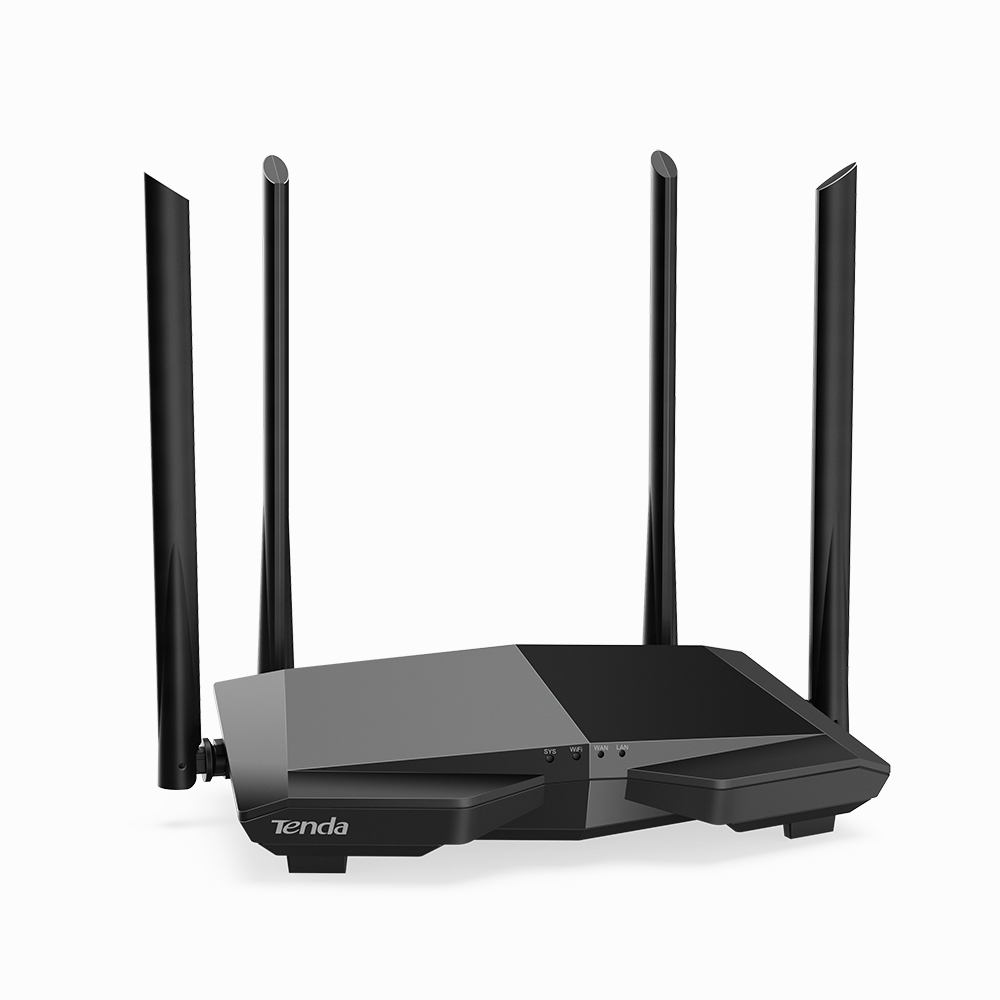

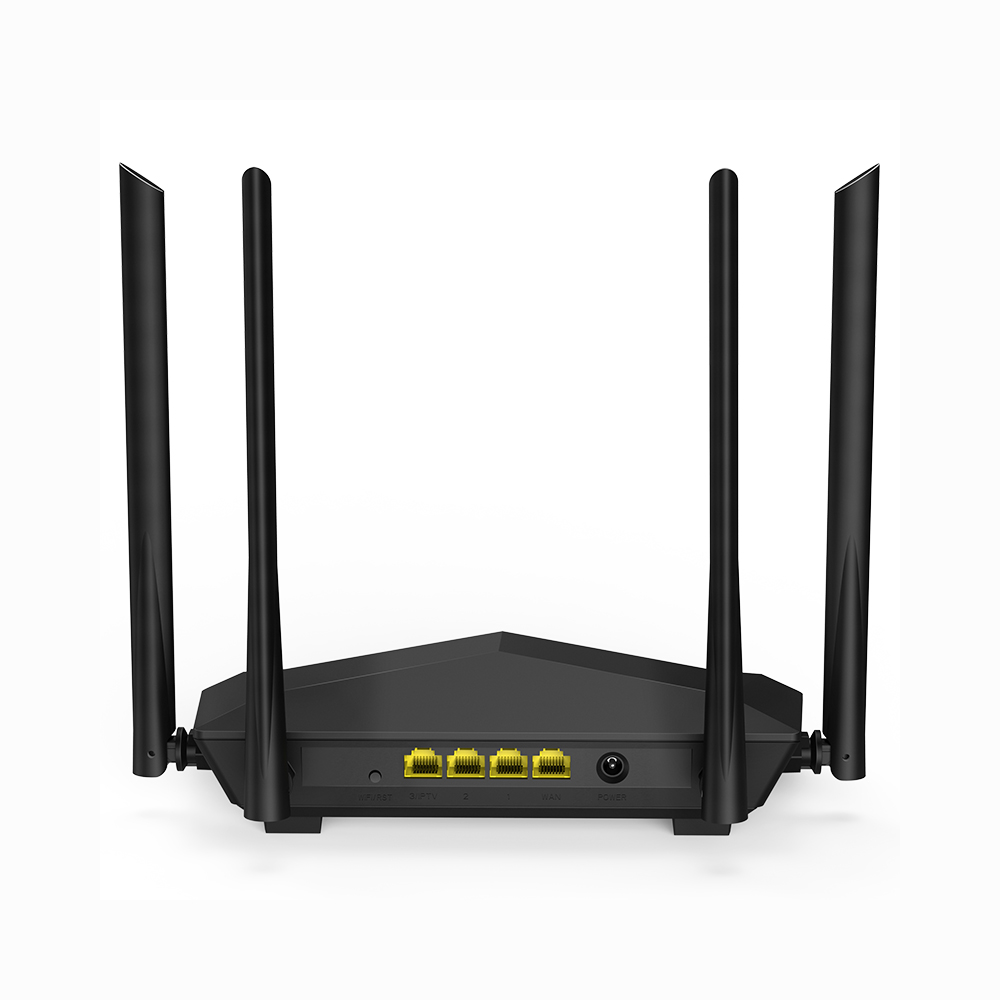

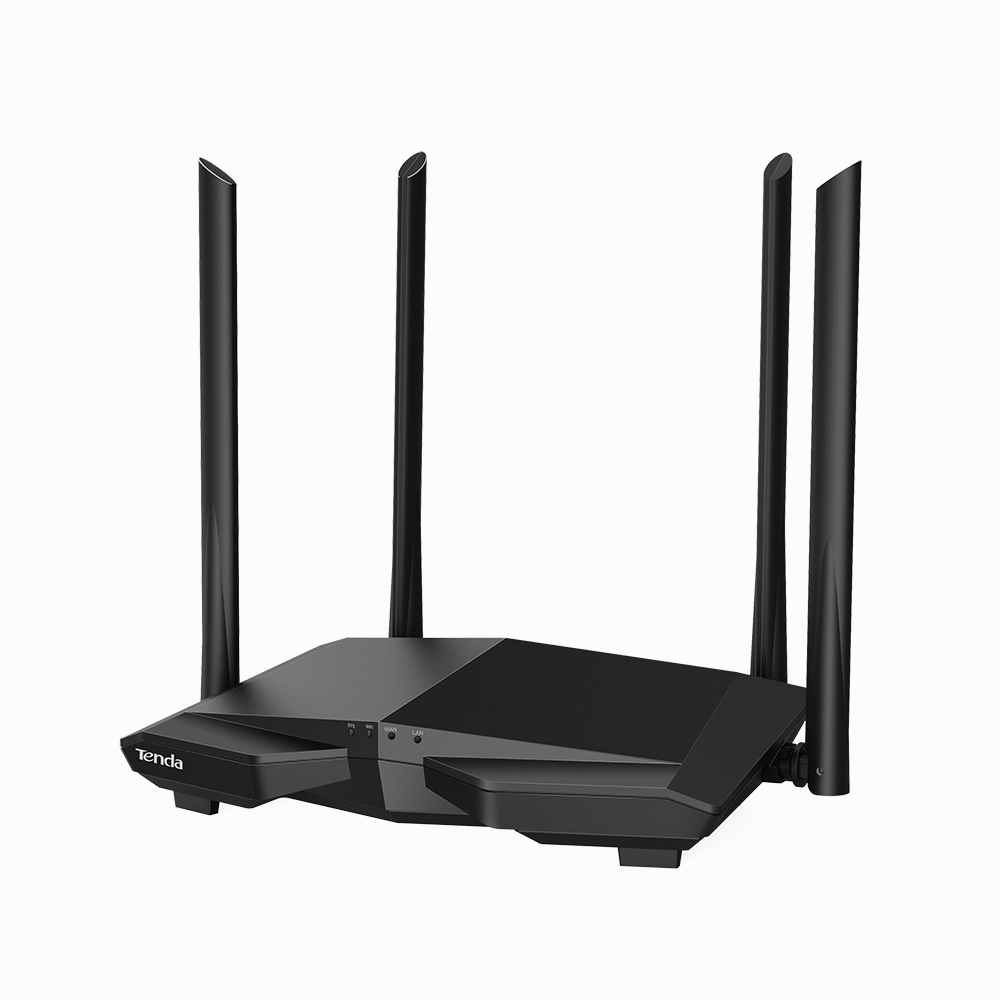

AC1200 Smart Dual-Band WiFi Router
Power Adapter
Install Guide
Ethernet Cable
