- Reception Sensitivity
11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBmPassive PoEPassive power over ethenet via PoE/LAN (+4,5pins, -7,8pins)
Voltage range: 9-13.8V DCLightning Protection6000V
Power Method12V1A Passive PoE
LED IndicatorPoE/LAN,LED1,LED2,LED3
Waterproof LevelIP65
Power Consumption4.3W
Reset Button1*Reset Button
GND1*GND
Antenna BeamwidthHorizontal: 60° Vertical: 30°
Antennas Gain12dbi
Antenna PolarizationHorizational Polarization
Interfaces2*10/100Mbps Ethernet Port
Maximum Wireless Rate150Mbps
Compliant StandardsIEEE 802.11b/g/n
Frequency Range2.4GHz
- Managed By Controller
PC Software CPE Assistant
System LogsSupport
Username ManagermentSupport
Backup/Restore ConfigurationSupport
Firmware upgradeSupport
Time and Date SettingSupport
Network DiagnosesPing, Traceroute, Signal Scan
Dyndnsnoip, dyndns.org
Ping WatchdogSupport
Page TimeoutSupport
Schedule RebootSupport
Remote Web accessSupport
VPN Pass-ThroughPPTP,L2TP
DHCP ServerSupport
VLAN Tagging for SSIDSupport
Transparent BridgeSupport
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
APSD CapableSupport
WMM CapableSupport
Transmission PowerAdjustable power by 1dBm
Weak Signal Client LimitationSupport
Wireless Access ControlSupport
Channel Bandwidth20/40MHz
SSID IsolationSupport
Wireless Client isolationSupport
SSID HiddenSupport
Enable/Disable Wireless RadioSupport
Operating modeAP/Station/WISP/P2MP/WDS Repeater/Router
- Certification
FCC/CE/RoHS
Default Login Passwordadmin
Default Login Usernameadmin
Default login IP192.168.2.1
Storage Humidity10%~90% non-condensing
Operating Humidity10%~90% non-condensing
Storage Temperature-40℃ ~ 70℃
Operation Temperature-30℃ ~ 60℃

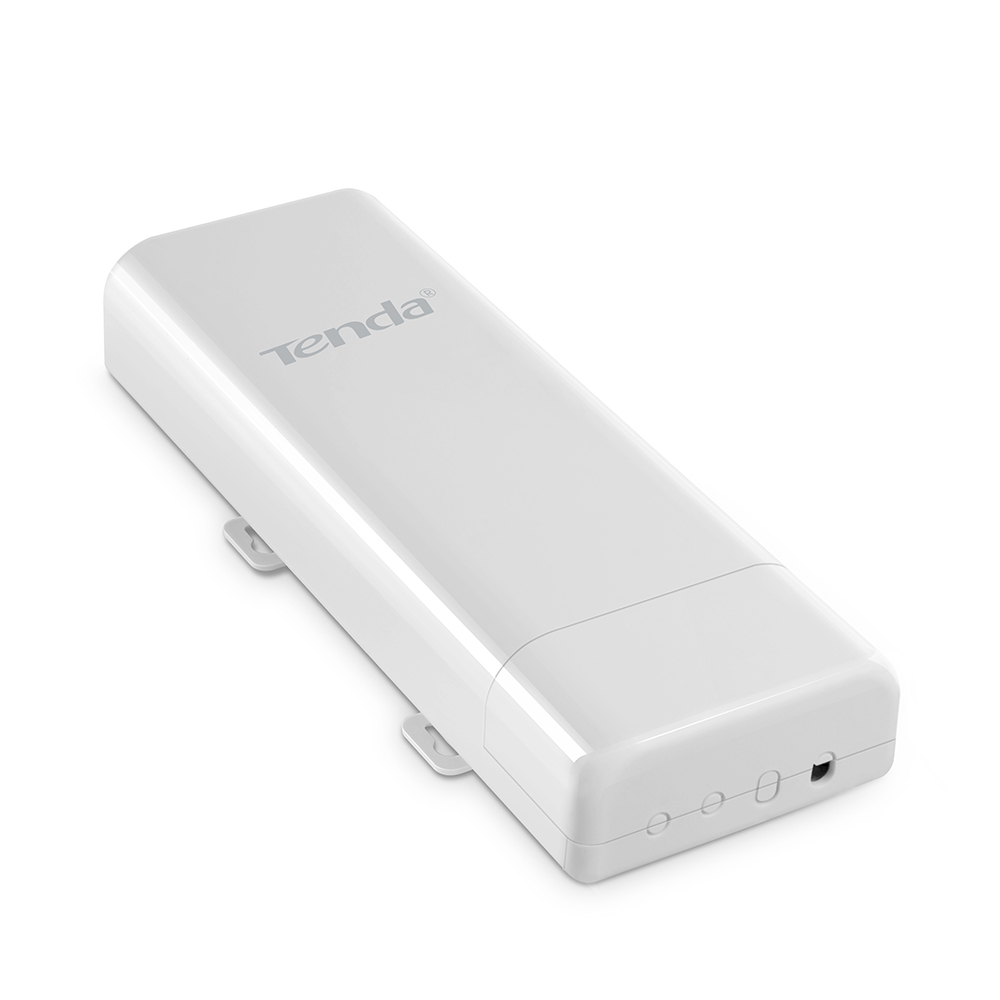

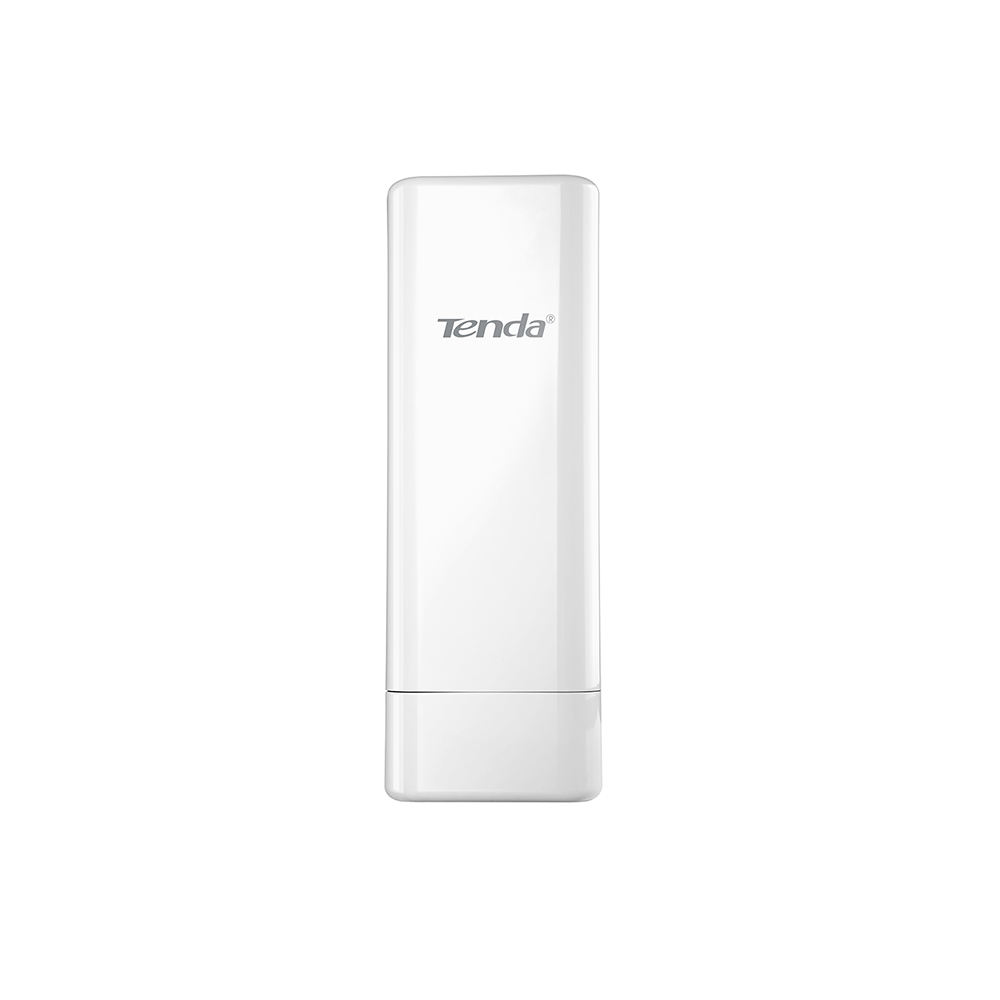

Package Contents1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide - Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
DeploymentPole Mount/Wall Mount
Dimension270*94.86*67.5mm
ModelO3
